CIPS positioning system

Hydraulic cylinders with Ceraplate coating can be provided with an integrated position measuring system. The scale of the measuring system is integrated in the coating system. A contactless sensor in the cylinder head operates according to the Hall-effect.

Technical facts CIPS

  • Incremental measuring system with two phase displaced output channels
  • Resolution of measuring system: 1 mm
  • Max. output frequency: 25 kHz
  • Max. measuring length: 20 m
  • Max. piston rod diameter: 1,500 m
CIPS mode of operation
CIPS positioning system

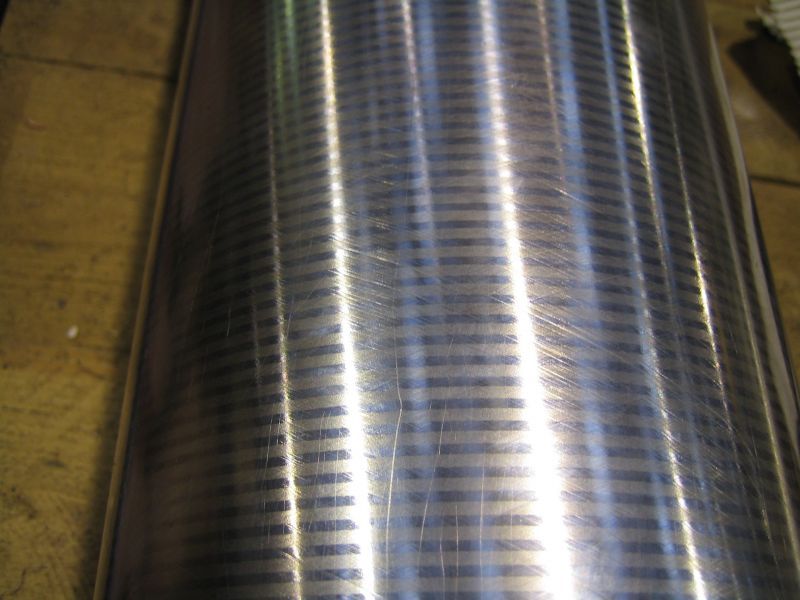

CIPS groove structure
